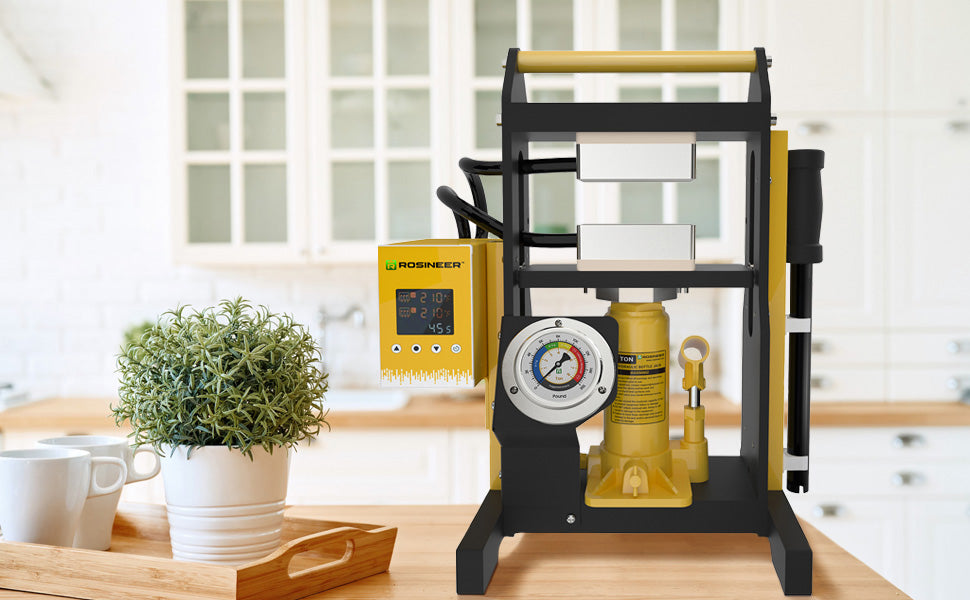

Rosineer MIGHTY-5 Quick Start Guide

1. Position your machine on a sturdy flat table surface.
2. Attach the Driptek support legs as displayed in the manual and tighten the screws.
3. Close the release valve using the jack handle.
4. Connect the press control panel to the electrical outlet using the enclosed power cord and flip the power switch.
5. Now enter your desired press parameters (temperature, time, and temperature scale) using Set, Up, and Down buttons. Please follow the press manual for detailed descriptions and visual guides or see the video below (the control panel is universal for all our presses). Once the parameters are saved, the plates heating starts.
6. Wait until the plates reach the set temperature.
7. Position your material in the center of the bottom plate.
8. Gently pump the jack handle to lift up the bottom plate and apply pressure. Use the built-in pressure gauge to monitor the rising pressure.
9. When the desired pressure is reached, start the timer countdown by pressing Timer button.
10. Grasp the press handle and tilt the machine backwards until it rests on its support legs.
11. Wait until the countdown ends and the press starts beeping.
12. Lift up the press into the vertical position and stop the timer's beeping by pressing Timer button again.
13. Use the jack handle to release the bottle jack valve opening the plates.
14. Remove your pressed material using tools or heat resistant gloves.
15. Press the next batch or flip the switch to turn off the machine and unplug it from the outlet.

Control Panel Setting: universal for all Rosineer presses
